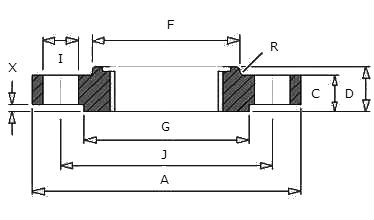

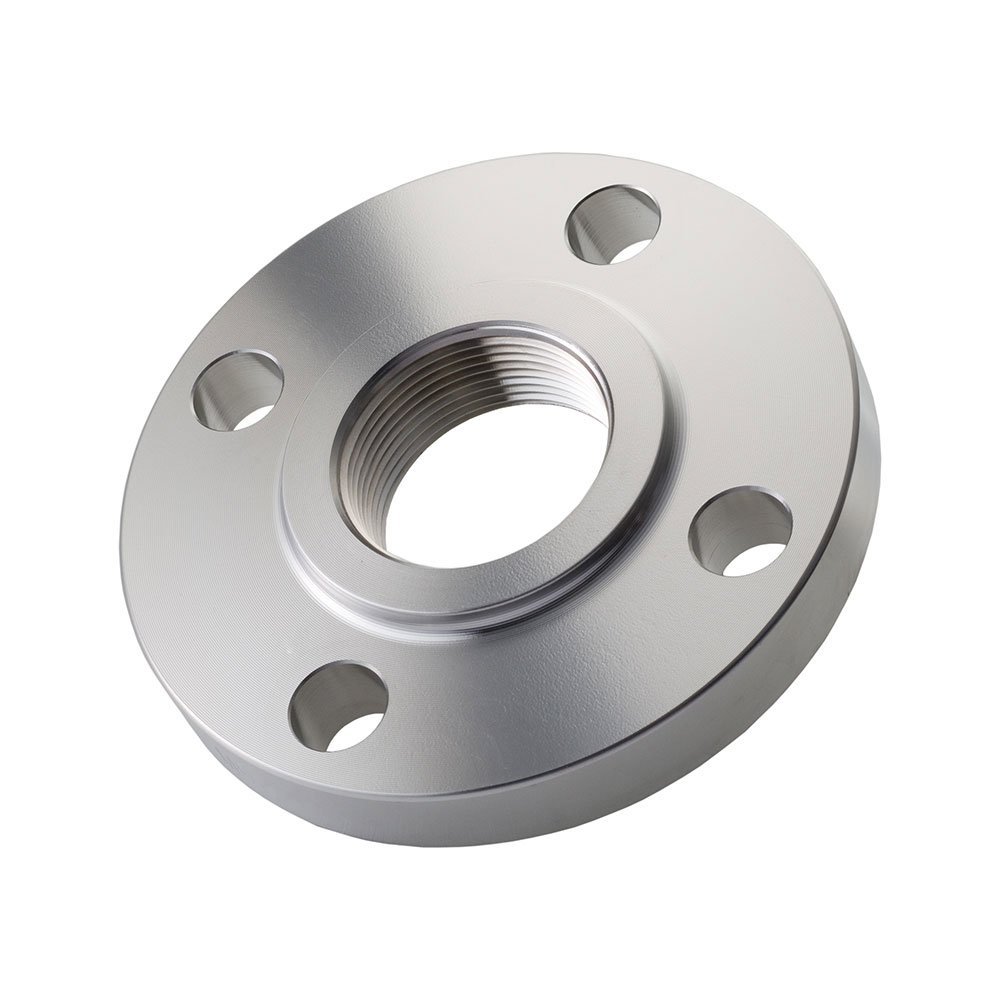

Flange threaded
B 16.5 THREADED RF
Dimensioni ANSI 150
| Pipe | Flange Data | Hub Data | Raised Face | Drilling Data | Weight | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | C | D | E | F | G | H | I | J | |||
| Nominal Size | Outside Dia | Overall Dia | Flange Thickness min | Overall Length | Threaded Length min | Hub Dia | Face Dia | Number of Holes | Bolt Hole Dia | Dia of Circle of Holes | Kg/Piece |
| mm | mm | mm | mm | mm | mm | mm | mm | mm | |||
| ½ | 0.84 | 3.50 | 0.440 | 0.620 | 0.620 | 1.190 | 1.38 | 4 | 0.62 | 2.38 | 0.39 |
| 21.3 | 88.90 | 11.20 | 15.70 | 15.70 | 30.20 | 35.10 | 15.7 | 60.45 | |||
| ¾ | 1.05 | 3.88 | 0.500 | 0.620 | 0.620 | 1.500 | 1.69 | 4 | 0.62 | 2.75 | 0.56 |
| 26.7 | 98.60 | 12.70 | 15.70 | 15.70 | 38.10 | 42.9 | 15.7 | 69.85 | |||
| 1 | 1.315 | 4.25 | 0.560 | 0.690 | 0.690 | 1.940 | 2 | 4 | 0.62 | 3.12 | 0.78 |
| 33.4 | 108.00 | 14.20 | 17.50 | 17.50 | 49.30 | 50.8 | 15.7 | 79.25 | |||
| 1 ¼ | 1.66 | 4.62 | 0.620 | 0.810 | 0.810 | 2.310 | 2.5 | 4 | 0.62 | 3.50 | 1.03 |
| 42.2 | 117.30 | 15.70 | 20.60 | 20.60 | 58.70 | 63.5 | 15.7 | 88.90 | |||
| 1 ½ | 1.9 | 5.00 | 0.690 | 0.880 | 0.880 | 2.560 | 2.88 | 4 | 0.62 | 3.88 | 1.32 |
| 48.3 | 127.00 | 17.50 | 22.40 | 22.40 | 65.00 | 73.15 | 15.7 | 98.60 | |||
| 2 | 2.375 | 6.00 | 0.750 | 1.000 | 1.000 | 3.060 | 3.62 | 4 | 0.75 | 4.75 | 2.06 |
| 60.3 | 152.40 | 19.10 | 25.40 | 25.40 | 77.70 | 91.9 | 19.10 | 120.70 | |||
| 2 ½ | 2.875 | 7.00 | 0.880 | 1.120 | 1.120 | 3.560 | 4.12 | 4 | 0.75 | 5.50 | 3.28 |
| 73 | 177.80 | 22.40 | 28.40 | 28.40 | 90.40 | 104.6 | 19.10 | 139.70 | |||
| 3 | 3.5 | 7.50 | 0.940 | 1.190 | 1.190 | 4.250 | 5 | 4 | 0.75 | 6.00 | 3.85 |
| 88.9 | 190.50 | 23.90 | 30.20 | 30.20 | 108.00 | 127 | 19.10 | 152.40 | |||
| 3 ½ | 4 | 8.50 | 0.940 | 1.250 | 1.250 | 4.810 | 5.5 | 8 | 0.75 | 7.00 | 4.81 |
| 101.6 | 215.90 | 23.90 | 31.75 | 31.75 | 122.20 | 139.7 | 19.10 | 177.80 | |||
| 4 | 4.5 | 9.00 | 0.940 | 1.310 | 1.310 | 5.310 | 6.19 | 8 | 0.75 | 7.50 | 5.30 |
| 114.3 | 228.60 | 23.90 | 33.30 | 33.30 | 134.90 | 157.2 | 19.10 | 190.50 | |||
| 5 | 5.563 | 10.00 | 0.940 | 1.440 | 1.440 | 6.440 | 7.31 | 8 | 0.88 | 8.50 | 6.07 |
| 141.3 | 254.00 | 23.90 | 36.60 | 36.60 | 163.60 | 185.7 | 22.40 | 215.90 | |||
| 6 | 6.625 | 11.00 | 1.000 | 1.560 | 1.560 | 7.560 | 8.5 | 8 | 0.88 | 9.50 | 7.45 |
| 168.3 | 279.40 | 25.40 | 39.60 | 39.60 | 192.00 | 215.9 | 22.40 | 241.30 | |||
Dimensioni ANSI 300
| Pipe | Flange Data | Hub Data | Raised Face | Drilling Data | Weight | |||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| A | C | D | E | F | G | H | I | J | ||||
| Nominal Size | Outside Dia | Overall Dia | Flange Thickness min | Overall Length | Threaded Length min | Hub Dia | Face Dia | Number of Holes | Bolt Hole Dia | Dia of Circle of Holes | Kg/Piece | |
| mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | |||
| ½ | 0.84 | 3.75 | 0.93 | 0.56 | 0.88 | 0.62 | 1.5 | 1.38 | 4 | 0.62 | 2.62 | 0.64 |
| 21.3 | 95.3 | 23.6 | 14.2 | 22.3 | 15.7 | 38.1 | 35 | 15.7 | 66.55 | |||
| ¾ | 1.05 | 4.62 | 1.14 | 0.62 | 1 | 0.62 | 1.88 | 1.69 | 4 | 0.75 | 3.25 | 1.12 |
| 26.7 | 117.3 | 29 | 15.7 | 25.4 | 15.7 | 42.7 | 42.9 | 19 | 82.5 | |||
| 1 | 1.315 | 4.88 | 1.41 | 0.69 | 1.06 | 0.69 | 2.12 | 2 | 4 | 0.75 | 3.5 | 1.36 |
| 33.4 | 124 | 35.8 | 17.5 | 26.9 | 17.5 | 53.8 | 50.8 | 19 | 88.9 | |||
| 1 ¼ | 1.66 | 5.25 | 1.75 | 0.75 | 1.06 | 0.81 | 2.5 | 2.5 | 4 | 0.75 | 3.88 | 1.68 |
| 42.2 | 133.4 | 44.4 | 19 | 26.9 | 20.6 | 63.5 | 63.5 | 19 | 98.5 | |||
| 1 ½ | 1.9 | 6.12 | 1.99 | 0.81 | 1.19 | 0.88 | 2.75 | 2.88 | 4 | 0.88 | 4.5 | 2.49 |
| 48.3 | 155.4 | 50.5 | 20.6 | 30.2 | 22.3 | 69.85 | 73.15 | 22.3 | 114.3 | |||
| 2 | 2.375 | 6.5 | 2.5 | 0.88 | 1.31 | 1.12 | 3.31 | 3.62 | 8 | 0.75 | 5 | 2.87 |
| 60.3 | 165.1 | 63.5 | 22.3 | 33.2 | 28.4 | 84 | 91.9 | 19 | 127 | |||
| 2 ½ | 2.875 | 7.5 | 3 | 1 | 1.5 | 1.25 | 3.94 | 4.12 | 8 | 0.88 | 5.88 | 4.32 |
| 73 | 190.5 | 76.2 | 25.4 | 38.1 | 31.7 | 100 | 104.6 | 22.3 | 149.3 | |||
| 3 | 3.5 | 8.25 | 3.63 | 1.12 | 1.69 | 1.25 | 4.62 | 5 | 8 | 0.88 | 6.62 | 5.85 |
| 88.9 | 209.6 | 92.2 | 28.4 | 42.9 | 31.7 | 117.3 | 127 | 22.3 | 168.1 | |||
| 3 ½ | 4 | 9 | 4.13 | 1.19 | 1.75 | 1.44 | 5.25 | 5.5 | 8 | 0.88 | 7.25 | 7.34 |
| 101.6 | 228.6 | 104.9 | 30.2 | 44.4 | 36.5 | 133.3 | 139.7 | 22.3 | 184.1 | |||
| 4 | 4.5 | 10 | 4.63 | 1.25 | 1.88 | 1.44 | 5.75 | 6.19 | 8 | 0.88 | 7.88 | 9.61 |
| 114.3 | 254 | 117.6 | 31.7 | 47.7 | 36.5 | 146 | 157.2 | 22.3 | 200.1 | |||
Dimensioni ANSI 600
| Pipe | Flange Data | Hub Data | Raised Face | Drilling Data | Weight | |||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| A | C | D | E | F | G | H | I | J | ||||
| Nominal Size | Outside Dia | Overall Dia | Flange Thickness min | Overall Length | Threaded Length min | Hub Dia | Face Dia | Number of Holes | Bolt Hole Dia | Dia of Circle of Holes | Kg/Piece | |
| mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | |||
| ½ | 0.84 | 3.75 | 0.93 | 0.56 | 0.88 | 0.62 | 1.5 | 1.38 | 4 | 0.62 | 2.62 | 0.74 |
| 21.3 | 95.3 | 23.6 | 14.2 | 22.4 | 15.7 | 38.1 | 35 | 15.7 | 66.55 | |||
| ¾ | 1.05 | 4.62 | 1.14 | 0.62 | 1 | 0.62 | 1.88 | 1.69 | 4 | 0.75 | 3.25 | 1.27 |
| 26.7 | 117.3 | 29 | 15.7 | 25.4 | 15.7 | 47.8 | 42.9 | 19.1 | 82.6 | |||
| 1 | 1.315 | 4.88 | 1.41 | 0.69 | 1.12 | 0.69 | 2.12 | 2 | 4 | 0.75 | 3.5 | 1.52 |
| 33.4 | 124 | 35.8 | 17.5 | 28.4 | 17.5 | 53.8 | 50.8 | 19.1 | 88.9 | |||
| 1 ¼ | 1.66 | 5.25 | 1.75 | 0.81 | 1.12 | 0.81 | 2.5 | 2.5 | 4 | 0.75 | 3.88 | 2.03 |
| 42.2 | 133.4 | 44.4 | 20.6 | 28.4 | 20.6 | 63.5 | 63.5 | 19.1 | 98.6 | |||
| 1 ½ | 1.9 | 6.12 | 1.99 | 0.88 | 1.25 | 0.88 | 2.75 | 2.88 | 4 | 0.88 | 4.5 | 2.96 |
| 48.3 | 155.4 | 50.5 | 22.4 | 31.75 | 22.4 | 69.85 | 73.15 | 22.4 | 114.3 | |||
| 2 | 2.375 | 6.5 | 2.5 | 1 | 1.44 | 1.12 | 3.31 | 3.62 | 8 | 0.75 | 5 | 3.62 |
| 60.3 | 165.1 | 63.5 | 25.4 | 36.6 | 28.4 | 84.1 | 91.9 | 19.1 | 127 | |||
