Flange socket weld
B 16.5 SOCKET WELD RF
Dimensioni ANSI 150

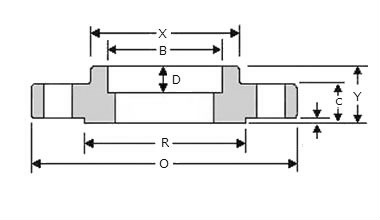

| Nominal Size | Outside Diam. | Thick. of Flange | Diam. of Raised Face | Diam of Hub at Base | Length Thru Hub | Diam. of Bore | Depth of Socket | No. of Holes | Diam. of Holes | Diam. of Bolts | Diam. of Bolt Circle | Approx. Weight Pounds Kg |
|
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| O | C | R | X | Y | B | D | |||||||
| 1/2" | in. | 3.5 | 0.44 | 1.38 | 1.19 | 0.62 | 0.88 | 0.38 | 4 | 0.62 | 1/2 | 2.38 | 1 |
| mm. | 88.9 | 11.2 | 35.1 | 30.2 | 15.7 | 22.4 | 9.7 | 15.7 | 12.7 | 60.5 | 0.5 | ||
| 3/4" | in. | 3.88 | 0.5 | 1.69 | 1.5 | 0.62 | 1.09 | 0.44 | 4 | 0.62 | 1/2 | 2.75 | 2 |
| mm. | 98.6 | 12.7 | 42.9 | 38.1 | 15.7 | 27.7 | 11.2 | 15.7 | 12.7 | 69.9 | 1 | ||
| 1" | in. | 4.25 | 0.56 | 2 | 1.94 | 0.69 | 1.36 | 0.5 | 4 | 0.62 | 1/2 | 3.12 | 2 |
| mm. | 108 | 14.2 | 50.8 | 49.3 | 17.5 | 34.5 | 12.7 | 15.7 | 12.7 | 79.2 | 1 | ||
| 1 1/4" | in. | 4.62 | 0.62 | 2.5 | 2.31 | 0.81 | 1.7 | 0.56 | 4 | 0.62 | 1/2 | 3.5 | 3 |
| mm. | 117.3 | 15.7 | 63.5 | 58.7 | 20.6 | 43.2 | 14.2 | 15.7 | 12.7 | 88.9 | 1 | ||
| 1 1/2" | in. | 5 | 0.69 | 2.88 | 2.56 | 0.88 | 1.95 | 0.62 | 4 | 0.62 | 1/2 | 3.88 | 3 |
| mm. | 127 | 17.5 | 73.2 | 65 | 22.4 | 49.5 | 15.7 | 15.7 | 12.7 | 98.6 | 1 | ||
| 2" | in. | 6 | 0.75 | 3.62 | 3.06 | 1 | 2.44 | 0.69 | 4 | 0.75 | 5/8 | 4.75 | 5 |
| mm. | 152.4 | 19.1 | 91.9 | 77.7 | 25.4 | 62 | 17.5 | 19.1 | 15.9 | 120.7 | 2 | ||
| 2 1/2" | in. | 7 | 0.88 | 4.12 | 3.56 | 1.12 | 2.94 | 0.75 | 4 | 0.75 | 5/8 | 5.5 | 7 |
| mm. | 177.8 | 22.4 | 104.6 | 90.4 | 28.4 | 74.7 | 19.1 | 19.1 | 15.9 | 139.7 | 3 | ||
| 3" | in. | 7.5 | 0.94 | 5 | 4.25 | 1.19 | 3.57 | 0.81 | 4 | 0.75 | 5/8 | 6 | 8 |
| mm. | 190.5 | 23.9 | 127 | 108 | 30.2 | 90.7 | 20.6 | 19.1 | 15.9 | 152.4 | 4 | ||
| 3 1/2" | in. | 8.5 | 0.94 | 5.5 | 4.81 | 1.25 | 4.07 | 8 | 0.75 | 5/8 | 7 | 11 | |
| mm. | 215.9 | 23.9 | 139.7 | 122.2 | 31.8 | 103.4 | 19.1 | 15.9 | 177.8 | 5 | |||
| 4" | in. | 9 | 0.94 | 6.19 | 5.31 | 1.31 | 4.57 | 8 | 0.75 | 5/8 | 7.5 | 13 | |
| mm. | 228.6 | 23.9 | 157.2 | 134.9 | 33.3 | 116.1 | 19.1 | 15.9 | 190.5 | 6 |
Dimensioni ANSI 300
| Nominal Size | Outside Diam. | Thick. of Flange | Diam. of Raised Face | Diam of Hub at Base | Length Thru Hub | Diam. of Bore | Depth of Socket | No. of Holes | Diam. of Holes | Diam. of Bolts | Diam. of Bolt Circle | Approx. Weight Pounds Kg |
|
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| O | C | R | X | Y | B | D | |||||||
| 1/2" | in. | 3.75 | 0.56 | 1.38 | 1.5 | 0.88 | 0.88 | 0.38 | 4 | 0.62 | 1/2 | 2.62 | 2 |
| mm. | 95.3 | 14.2 | 35.1 | 38.1 | 22.4 | 22.4 | 9.7 | 15.7 | 12.7 | 66.5 | 1 | ||
| 3/4" | in. | 4.62 | 0.62 | 1.69 | 1.88 | 1 | 1.09 | 0.44 | 4 | 0.75 | 5/8 | 3.25 | 3 |
| mm. | 117.3 | 15.7 | 42.9 | 47.8 | 25.4 | 27.7 | 11.2 | 19.1 | 15.9 | 82.6 | 1 | ||
| 1" | in. | 4.88 | 0.69 | 2 | 2.12 | 1.06 | 1.36 | 0.5 | 4 | 0.75 | 5/8 | 3.5 | 3 |
| mm. | 124 | 17.5 | 50.8 | 53.8 | 26.9 | 34.5 | 12.7 | 19.1 | 15.9 | 88.9 | 1 | ||
| 1 1/4" | in. | 5.25 | 0.75 | 2.5 | 2.5 | 1.06 | 1.7 | 0.56 | 4 | 0.75 | 5/8 | 3.88 | 4 |
| mm. | 133.4 | 19.1 | 63.5 | 63.5 | 26.9 | 43.2 | 14.2 | 19.1 | 15.9 | 98.6 | 2 | ||
| 1 1/2" | in. | 6.12 | 0.81 | 2.88 | 2.75 | 1.19 | 1.95 | 0.62 | 4 | 0.88 | 3/4 | 4.5 | 6 |
| mm. | 155.4 | 20.6 | 73.2 | 69.9 | 30.2 | 49.5 | 15.7 | 22.4 | 19.1 | 114.3 | 3 | ||
| 2" | in. | 6.5 | 0.88 | 3.62 | 3.31 | 1.31 | 2.44 | 0.69 | 8 | 0.75 | 5/8 | 5 | 7 |
| mm. | 165.1 | 22.4 | 91.9 | 84.1 | 33.3 | 62 | 17.5 | 19.1 | 15.9 | 127 | 3 | ||
| 2 1/2" | in. | 7.5 | 1 | 4.12 | 3.94 | 1.5 | 2.94 | 0.75 | 8 | 0.88 | 3/4 | 5.88 | 10 |
| mm. | 190.5 | 25.4 | 104.6 | 100.1 | 38.1 | 74.7 | 19.1 | 22.4 | 19.1 | 149.4 | 5 | ||
| 3" | in. | 8.25 | 1.12 | 5 | 4.62 | 1.69 | 3.57 | 0.81 | 8 | 0.88 | 3/4 | 6.62 | 13 |
| mm. | 209.6 | 28.4 | 127 | 117.3 | 42.9 | 90.7 | 20.6 | 22.4 | 19.1 | 168.1 | 6 | ||
| 3 1/2" | in. | 9 | 1.19 | 5.5 | 5.25 | 1.75 | 4.07 | 8 | 0.88 | 3/4 | 7.25 | 17 | |
| mm. | 228.6 | 30.2 | 139.7 | 133.4 | 44.5 | 103.4 | 22.4 | 19.1 | 184.2 | 8 | |||
| 4" | in. | 10 | 1.25 | 6.19 | 5.75 | 1.88 | 4.57 | 8 | 0.88 | 3/4 | 7.88 | 22 | |
| mm. | 254 | 31.8 | 157.2 | 146.1 | 47.8 | 116.1 | 22.4 | 19.1 | 200.2 | 10 |
Dimensioni ANSI 600
| Nominal Size | Outside Diam. | Thick. of Flange | Diam. of Raised Face | Diam of Hub at Base | Length Thru Hub | Diam. of Bore | Depth of Socket | No. of Holes | Diam. of Holes | Diam. of Bolts | Diam. of Bolt Circle | Approx. Weight Pounds Kg |
|
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| O | C | R | X | Y | B | D | |||||||
| 1/2" | in. | 3.75 | 0.56 | 1.38 | 1.5 | 0.88 | 0.88 | 0.38 | 4 | 0.62 | 1/2 | 2.62 | 2 |
| mm. | 95.3 | 14.2 | 35.1 | 38.1 | 22.4 | 22.4 | 9.7 | 15.7 | 12.7 | 66.5 | 1 | ||
| 3/4" | in. | 4.62 | 0.62 | 1.69 | 1.88 | 1 | 1.09 | 0.44 | 4 | 0.75 | 5/8 | 3.25 | 3 |
| mm. | 117.3 | 15.7 | 42.9 | 47.8 | 25.4 | 27.7 | 11.2 | 19.1 | 15.9 | 82.6 | 1 | ||
| 1" | in. | 4.88 | 0.69 | 2 | 2.12 | 1.06 | 1.36 | 0.5 | 4 | 0.75 | 5/8 | 3.5 | 4 |
| mm. | 124 | 17.5 | 50.8 | 53.8 | 26.9 | 34.5 | 12.7 | 19.1 | 15.9 | 88.9 | 2 | ||
| 1 1/4" | in. | 5.25 | 0.81 | 2.5 | 2.5 | 1.12 | 1.7 | 0.56 | 4 | 0.75 | 5/8 | 3.88 | 5 |
| mm. | 133.4 | 20.6 | 63.5 | 63.5 | 28.4 | 43.2 | 14.2 | 19.1 | 15.9 | 98.6 | 2 | ||
| 1 1/2" | in. | 6.12 | 0.88 | 2.88 | 2.75 | 1.25 | 1.95 | 0.62 | 4 | 0.88 | 3/4 | 4.5 | 7 |
| mm. | 155.4 | 22.4 | 73.2 | 69.9 | 31.8 | 49.5 | 15.7 | 22.4 | 19.1 | 114.3 | 3 | ||
| 2" | in. | 6.5 | 1 | 3.62 | 3.31 | 1.44 | 2.44 | 0.69 | 8 | 0.75 | 5/8 | 5 | 9 |
| mm. | 165.1 | 25.4 | 91.9 | 84.1 | 36.6 | 62 | 17.5 | 19.1 | 15.9 | 127 | 4 | ||
| 2 1/2" | in. | 7.5 | 1.12 | 4.12 | 3.94 | 1.62 | 2.94 | 0.75 | 8 | 0.88 | 3/4 | 5.88 | 13 |
| mm. | 190.5 | 28.4 | 104.6 | 100.1 | 41.1 | 74.7 | 19.1 | 22.4 | 19.1 | 149.4 | 6 | ||
| 3" | in. | 8.25 | 1.25 | 5 | 4.62 | 1.81 | 3.57 | 0.81 | 8 | 0.88 | 3/4 | 6.62 | 16 |
| mm. | 209.6 | 31.8 | 127 | 117.3 | 46 | 90.7 | 20.6 | 22.4 | 19.1 | 168.1 | 7 | ||
| 3 1/2" | in. | 9 | 1.38 | 5.5 | 5.25 | 1.94 | 4.07 | 8 | 1 | 7/8 | 7.25 | 21 | |
| mm. | 228.6 | 35.1 | 139.7 | 133.4 | 49.3 | 103.4 | 25.4 | 22.2 | 184.2 | 10 | |||
| 4" | in. | 10.75 | 1.5 | 6.19 | 6 | 2.12 | 4.57 | 8 | 1 | 7/8 | 8.5 | 37 | |
| mm. | 273.1 | 38.1 | 157.2 | 152.4 | 53.8 | 116.1 | 25.4 | 22.2 | 215.9 | 17 |
